Lab Series L5/L7/L9/L11 Amp Service Docs

[ Technical Overview ] [ Service Docs ]
[ Louden Up! ] [ Music/Guitars/Amps ]
The board layouts and schematic were scanned and sent by Hector <hector@stny.rr.com> from the AGA newsgropup. See below for larger, more useful versions.

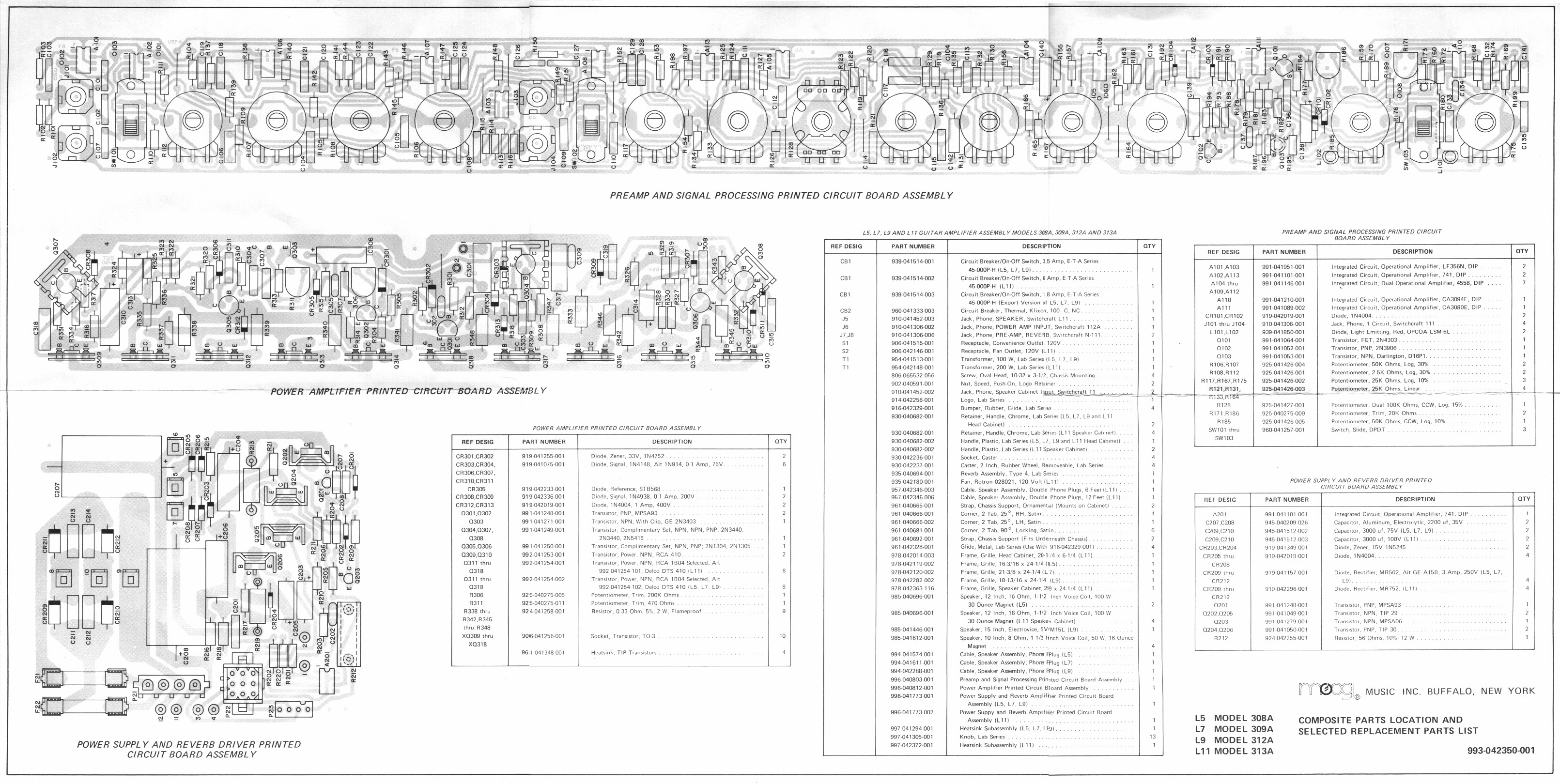

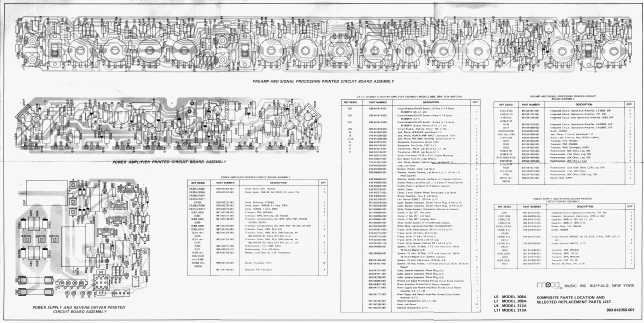

[schematic here]
Board Layout

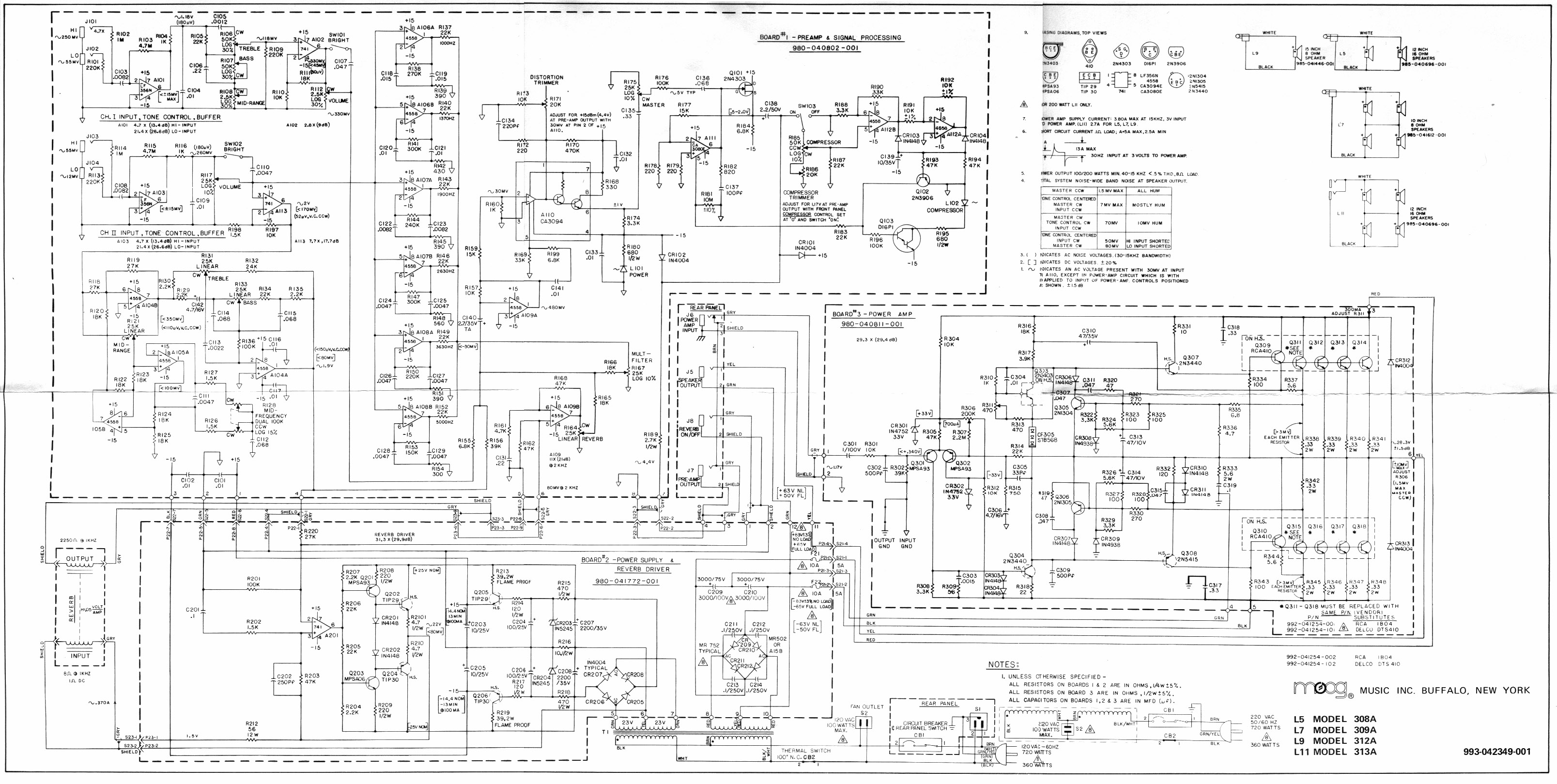

[schematic here]
Schematic

You can also get larger, beautiful scans as progressive JPEGs:

Board Layout
JPEG(1M) [~3.2kx1.6k]
PDF(2.25M)
Schematic
JPEG(.83M) [~3.2kx1.6k]
PDF(1.5M)

I also have scans of the service notes. If I had some good OCR software I would convert these to text; if someone wants to do that and send me the text files, I'll post them here. Each image is a little over 300KB.

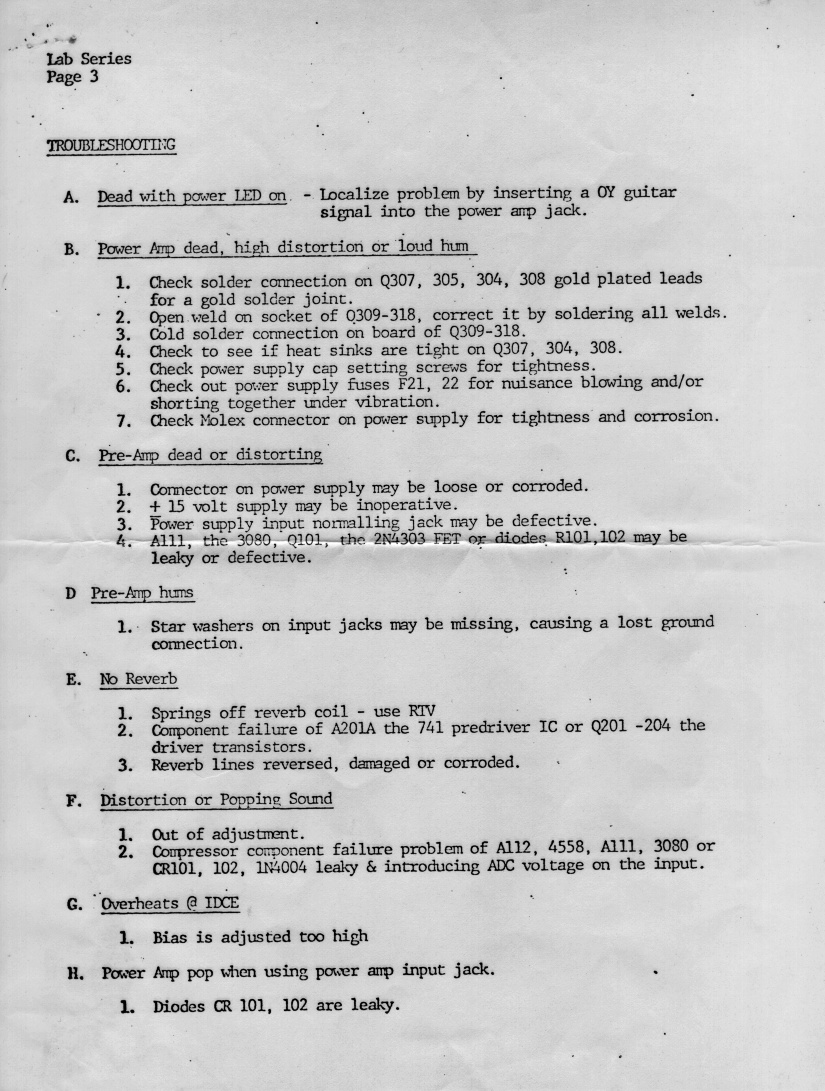

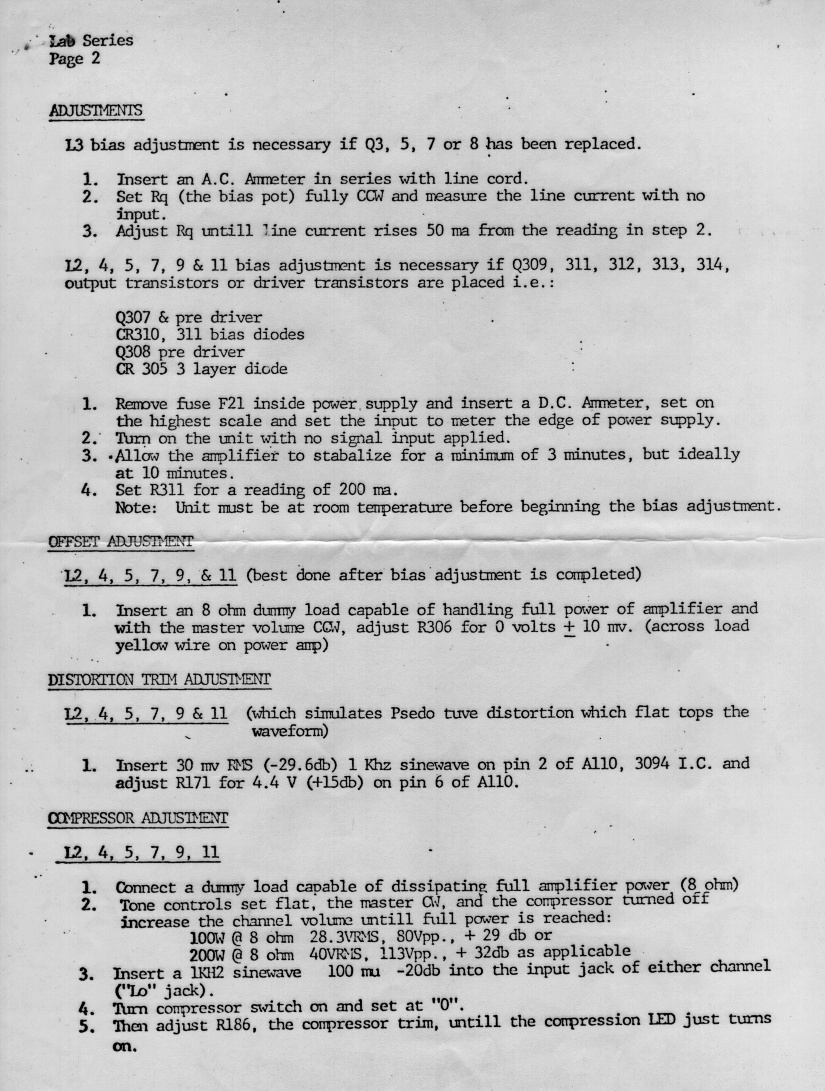

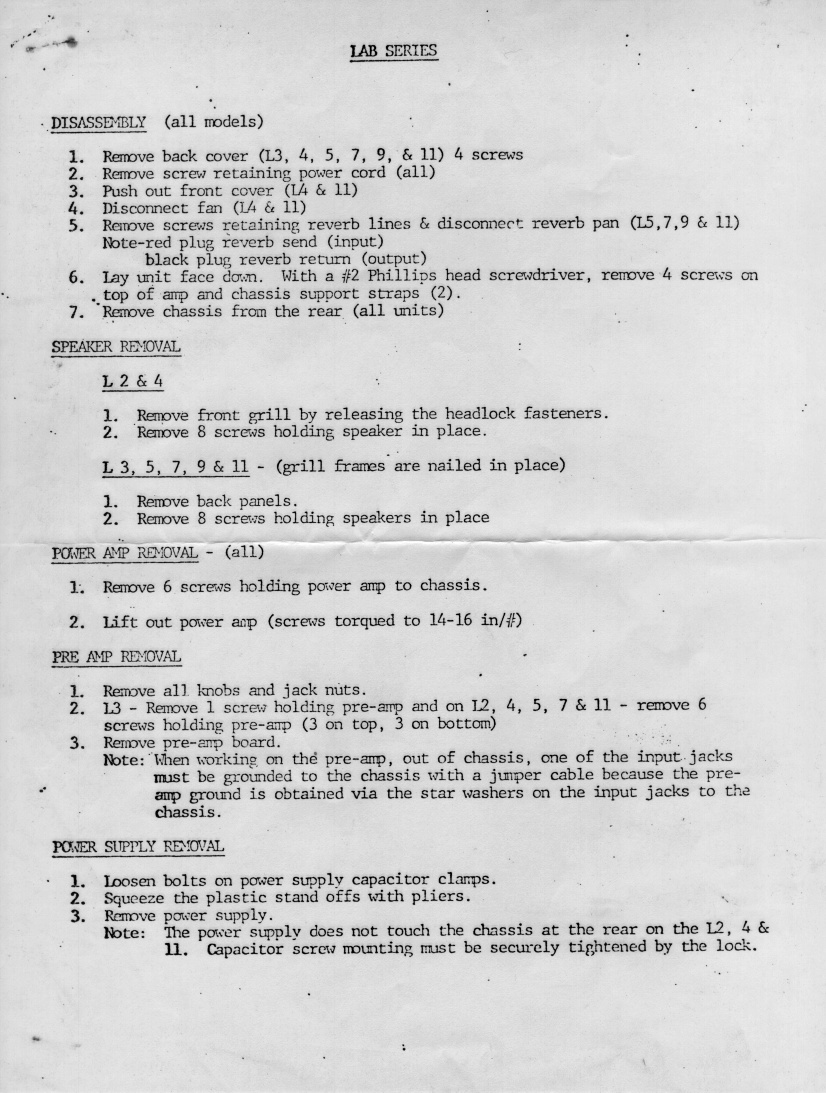

Service Notes: Page 1 Page 2 Page 3
